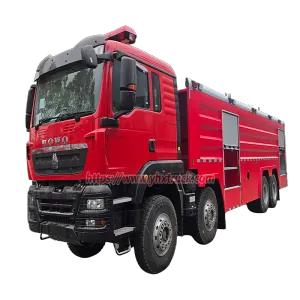

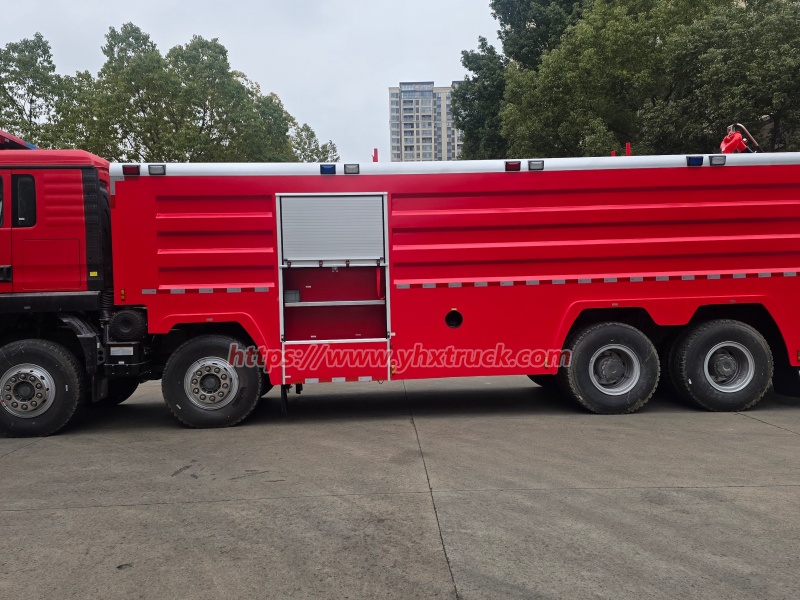

1. Product Overview
The SINOTRUK HOWO 8×4 Fire Fighting Truck is an extra heavy-duty, multi-functional fire rescue vehicle constructed on the mature and reliable original HOWO 8×4 heavy-duty chassis. Supported by a high-power diesel engine, the vehicle delivers stable power output, excellent climbing performance and superior road adaptability, laying a solid foundation for high-intensity emergency rescue missions.
Equipped with an extra-large anti-corrosion integrated tank system, the truck supports flexible configuration of pure water tank, water-foam combination tank or water-dry powder combination tank to meet diverse fire-fighting demands. It adopts a fully enclosed integrated pump cabin, matched with high-flow fire centrifugal pump and vacuum priming pump, paired with a 360° rotatable long-range multifunctional fire monitor. With a centralized electric control panel and complete warning and lighting system, the whole vehicle features simple operation, stable performance and high rescue efficiency. It can effectively extinguish Class A solid fires, Class B liquid fires and various complex conventional fires, serving as core heavy rescue equipment for high-standard fire protection scenarios. In addition, our company provides a full lineup of fire trucks, including ordinary water tank fire trucks, foam fire trucks, dry powder combined fire trucks,
Rescue Fire Trucks, aerial fire trucks and DEN series fire trucks, to support one-stop procurement for global customers.
2. Working Principle
This HOWO 8×4 heavy-duty fire truck adopts mechanical power transmission and pressurized water supply working principle, with stable and reliable overall operation without complex electronic vulnerable parts.
First, the vehicle engine drives the power take-off to output power stably, which activates the high-flow fire pump and vacuum priming pump. The vacuum priming pump quickly completes water absorption from the onboard large-capacity tank or external natural water sources such as rivers and pools. After pressurization by the professional fire pump, water is transported to the multifunctional fire monitor through high-pressure fire-resistant pipelines.
The fire monitor can freely switch between high-pressure straight jet and fine water mist modes. The straight jet realizes long-distance concentrated water supply for rapid fire suppression of large-area open fires, while the water mist forms a dense water curtain to cool down the fire scene, isolate heat radiation and prevent fire spread. For optional foam or dry powder configurations, the supporting proportional mixing system and pneumatic powder spraying system can be activated synchronously, realizing dual-media fire extinguishing to suppress oil fires and chemical fires that pure water cannot handle, achieving the integration of cooling, oxygen isolation and flame extinction.
3. Real Application Scenarios in Daily Operations
Benefiting from its ultra-large tank capacity, strong power and multi-functional fire-extinguishing modes, the HOWO 8×4 heavy-duty fire truck is widely used in high-standard and high-risk fire rescue scenarios that ordinary medium and small fire trucks cannot support.
It is the preferred equipment for large petrochemical parks, oil depots, fuel storage bases and chemical industrial zones, capable of handling large-scale oil liquid fires and chemical combustion accidents. It is also perfectly applicable to power stations, energy bases, large industrial zones and port terminals, undertaking equipment fire rescue and regional fire prevention and control tasks. In urban fire protection, it serves municipal main fire stations, responding to large-scale building fires, warehouse logistics fires and urban complex fire accidents. In addition, it can perform long-distance emergency water supply, scene cooling and fire isolation tasks, fully adapting to long-duration and high-intensity rescue operations in various complex environments.
4. Comparison with Traditional Fire Trucks
Compared with traditional 4×2 and 6×4 ordinary fire trucks, the HOWO 8×4 heavy-duty fire truck has overwhelming comprehensive advantages in chassis performance, endurance capacity and rescue efficiency.
In terms of chassis performance, traditional light and medium-duty fire trucks have limited bearing capacity and poor stability under full-load conditions, and are prone to insufficient power on complex road sections. The 8×4 heavy-duty chassis of this model features ultra-strong load-bearing capacity, more stable driving and stronger cross-country performance, adapting to long-distance rapid rush rescue and harsh road conditions.
In terms of operational endurance, ordinary fire trucks have small tank capacity and require frequent water replenishment during large-scale fires, resulting in interrupted rescue. The super-large tank volume of the 8×4 model supports long-term continuous high-flow fire suppression, greatly improving continuous combat capability.
In terms of functional applicability, traditional single-function fire trucks can only deal with conventional solid fires. This model supports multi-module configuration of water, foam and dry powder, covering more fire types. Meanwhile, it adopts mature chassis technology with highly universal spare parts, lower failure rate and more convenient later maintenance than traditional models.
SINOTRUK HOWO Fire Fighting Truck 8×4 (TX) chassis (24000litter Capacity) |
General | Chassis Brand | Sinotruck Howo 8x4 |
| Overall Dimension | 11900X 2540 X 3680mm |
| GVW / Kerb Weight | 42600kg /18050 kg |
Cab | Driving Room | Sinotruck Howo |
| Air Conditioner | W/ air conditioner |
Engine | Engine Model | MC11.44-50 Engine |
| Max Power | 440-500HP |
| emission standard | Euro2/Euro2/Euro5/Euro6 |
Transmission | Transmission Box | ZF16S2230TO |
| Transmission Box | NH1 / b Flanged Force Takeoff |
Chassis | Suspension | Standard Edition Multiple Slats Before and After |
| Tire Specification | 315 80R22.5/385 65R22.5/12.00R20 |
Superstructure | Capacity | 24000litter |
| Material | Carbon steel |
| The upper body assembly is composed of water tank, pump compartment, water cannon, fog cannon and tool boxes. |
System | Liquid Storage System | Carbon steel anti-corrosion water tank, 24000L, with level monitor, anti-wave plate & drain valve |
| Pump System | High-pressure fire pump, integrated pump compartment, PTO drive, pressure gauge & vacuum priming device |
| Injection System | Fire water monitor with straight jet & atomization, range ≥70m |
| Auxiliary System | Control panel, hydraulic outriggers, toolbox, complete warning lights & sirens |
5. Buying Guide: How to Choose the Right 8×4 Heavy Fire Truck
When purchasing heavy-duty fire fighting trucks for large-scale industrial and municipal projects, customers need to focus on the following core configurations to select high-quality and high-matching equipment:
First, confirm the chassis qualification. Prioritize authentic heavy-duty 8×4 commercial chassis with high-power diesel engines, which guarantees stable power output under full-load operation and adapts to long-distance and high-intensity rescue tasks. Avoid modified light-duty chassis with insufficient bearing capacity.
Second, check the tank and pump system configuration. The tank must adopt overall anti-corrosion treatment to prevent rust and water leakage during long-term use. Equipped with standard professional fire centrifugal pump and vacuum priming pump to ensure fast water absorption, stable pressure and large flow. The fire monitor must support 360° all-round rotation and multi-mode switching to realize full-coverage fire suppression.
Third, select matching functional configurations according to usage scenarios. For petrochemical and chemical scenarios, choose foam or dry powder combined configuration; for conventional municipal fire protection, the large-capacity pure water configuration meets daily rescue demands.
Fourth, verify export compliance. All vehicles meet European export standards, with complete factory inspection reports, certification documents and customs clearance materials to support overseas project bidding, registration and smooth delivery.
6. Practical Operation & Maintenance Tips
Daily Operation Guidelines: Before starting the rescue operation, preheat the engine sufficiently and inspect the tank tightness, pipeline connectivity, control panel and warning lighting system to ensure no faults. It is forbidden to start the fire pump without water for a long time to avoid burning the pump body and sealing parts. When switching fire-extinguishing modes, stop the pump first for stable conversion to prevent pipeline pressure impact and equipment damage. During high-intensity operation, avoid long-term overload working to extend the service life of core components.
Regular Maintenance Tips: Conduct daily inspection of the fire monitor flexibility, electrical control system and warning lights. Clean the pump body filter and water inlet filter every week to prevent blockage and ensure smooth water supply. Monthly inspect all pipeline joints, valves and tank seals to eliminate hidden dangers of water and air leakage. Regularly replace chassis hydraulic oil and lubricate movable mechanical parts. For long-term parked vehicles, drain the residual liquid in the tank, clean the pipeline system, and park in a dry and ventilated environment to avoid corrosion and aging. Standard daily maintenance can effectively reduce failure rate and maintain long-term stable working performance of the vehicle.
7. Frequently Asked Questions (FAQ)
Q1: What fire scenarios is the HOWO 8×4 fire truck suitable for?A: It is mainly used for large-scale municipal fire rescue, petrochemical park fire fighting, oil depot and port fire prevention, and can handle Class A solid fires, Class B liquid fires and various complex large-area fire accidents, meeting high-intensity long-time rescue needs.
Q2: Can the vehicle be customized functionally?A: Yes. We support personalized customization of tank type (pure water, foam, dry powder combination), tank capacity, fire monitor parameters, vehicle paint color, lighting system and other configurations to adapt to different regional standards and project demands.
Q3: What are the advantages of 8×4 model compared with 6×4 model?A: The 8×4 chassis has larger load-bearing capacity and super-large tank volume, longer continuous operation time, more stable full-load driving performance, and is more suitable for large-scale and long-duration fire rescue tasks that require high endurance.
Q4: Is the vehicle compliant for overseas export?A: Absolutely. The whole vehicle meets international and European export standards. We provide complete certification documents, inspection reports and customs clearance materials to support overseas registration and project acceptance.
Q5: What after-sales support can be provided?A: We provide long-term global spare parts supply, professional online technical guidance, equipment operation training and fault diagnosis services, ensuring customers can use the equipment stably for a long time.
Conclusion
The SINOTRUK HOWO 8×4 Heavy-Duty Fire Fighting Truck is a high-end, high-efficiency and high-endurance professional fire rescue equipment tailored for large-scale and high-risk fire scenarios. Built on the mature 8×4 heavy-duty chassis, it boasts ultra-strong load-bearing capacity, stable driving performance and excellent environmental adaptability. Equipped with super-large anti-corrosion tank system and high-flow fire-fighting pump equipment, it solves the pain points of small tank capacity, short endurance and single function of traditional fire trucks.
With flexible functional configuration, simple operation, low maintenance cost and full export compliance, this vehicle is widely applicable to municipal fire brigades, petrochemical enterprises, port terminals, industrial parks and large overseas fire protection projects. As a reliable heavy-duty fire rescue device, it effectively improves the continuous combat capability and emergency response level of customer fire protection systems, and is the optimal choice for high-standard fire equipment procurement worldwide.
