1. Product Overview
SHACMAN truck mounted crane, also referred to as Truck with Crane,
Crane Truck,
Lorry Crane or
Loader Crane, is a professional specialized engineering vehicle. It perfectly integrates a full hydraulic crane system with a heavy-duty modified Shacman
Cargo Truck chassis, focusing on lifting, lowering, loading and transporting heavy loads. This integrated design combines superior road mobility and powerful lifting performance in one single unit, realizing multi-functional vehicle operation.

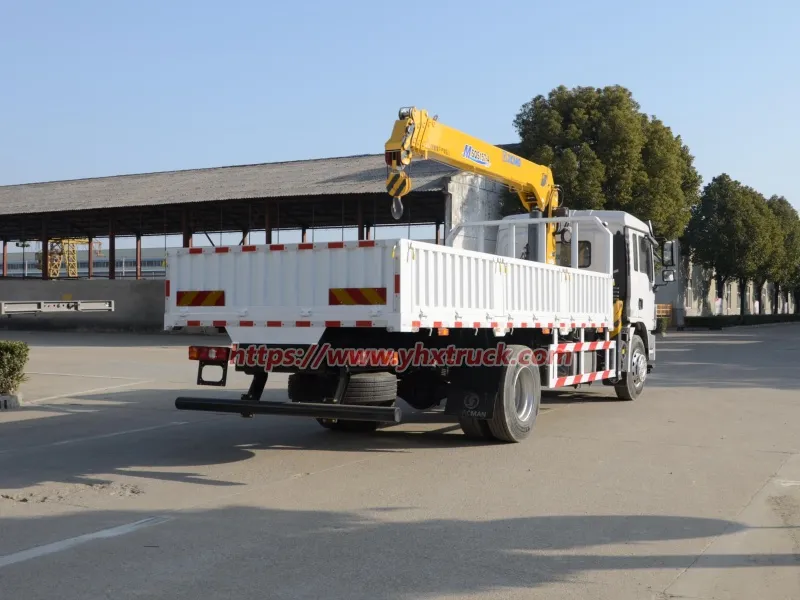

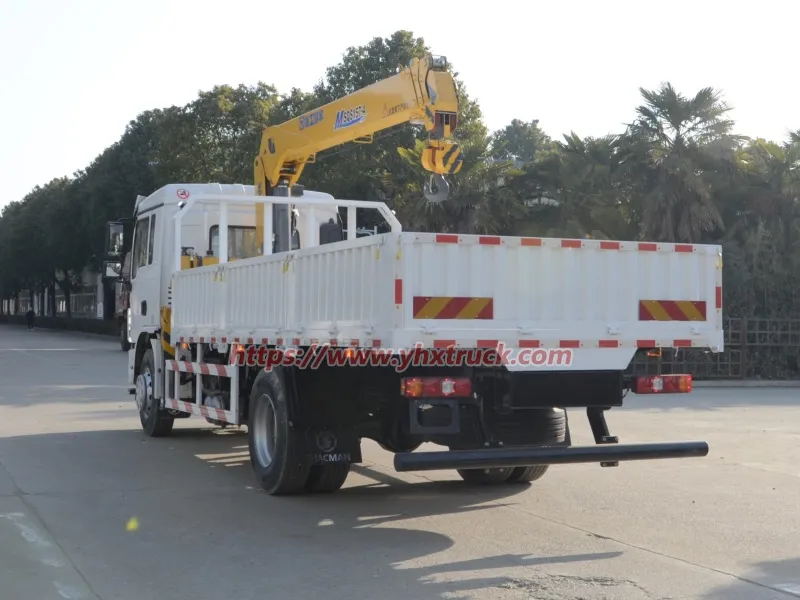

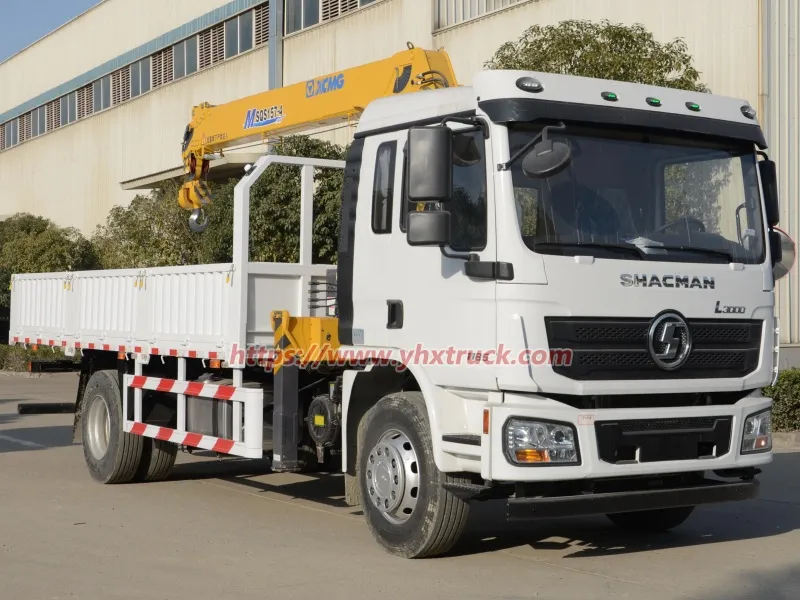

The Shacman crane truck is equipped with a portable boom crane mounted on a reinforced and optimized Shacman heavy-duty truck chassis. Adopting advanced hydraulic drive technology, it is available with hydraulic telescopic boom and knuckle boom configurations to lift and move all kinds of heavy materials. It delivers excellent mobile working capability, perfectly adapting to construction, logistics and public utility work. The complete vehicle structure consists of four core parts: Shacman truck chassis, cargo bed, hydraulic crane (telescopic/knuckle boom optional), and hydraulic stabilizer outriggers.
In terms of lifting capacity, the standard small and medium-duty models cover 2 tons to 20 tons, fully meeting daily commercial and engineering operation demands. Customized heavy-duty versions can reach over 100 tons, capable of handling ultra-heavy load construction tasks. With reliable Shacman chassis quality and integrated lifting and transportation functions, the truck features high versatility and wide industry applicability.
2. Working Principle
The Shacman truck mounted crane adopts mature and reliable hydraulic transmission working principle. The high-quality Shacman truck chassis provides stable and sufficient power to drive the entire hydraulic system, realizing precise hydraulic lifting, boom extension, retraction and 360° full continuous rotation. Operators can freely and accurately adjust the crane’s working radius and lifting height according to different working site conditions and load weights.
Before carrying out heavy-load lifting operations, the hydraulic stabilizer outriggers are fully extended to form a stable and balanced supporting base. This structure effectively prevents vehicle tilting, greatly improving overall operation stability and safety. Whether equipped with a telescopic boom or knuckle boom, the hydraulic system operates sensitively and smoothly with low failure rate, supporting long-time continuous outdoor and field working.
3. Daily Application Scenarios
Thanks to its dual functions of lifting and transportation, flexible mobility and stable load-bearing performance, the Shacman truck mounted crane is widely used in four core fields: construction engineering, logistics cargo handling, municipal engineering and emergency rescue.
It is commonly applied to building material loading and transportation, steel structure handling, urban road maintenance, infrastructure renovation, heavy equipment migration and field emergency rescue work. Relying on the strong bearing capacity and durable performance of Shacman heavy-duty chassis, the vehicle can easily adapt to urban roads, suburban construction sites and complex field working environments, completing efficient integrated lifting and transportation tasks.
4. Comparison With Traditional Models
Compared with traditional ordinary cargo trucks and independent fixed cranes, the integrated Shacman truck mounted crane has prominent comprehensive advantages. The traditional working mode requires separate purchase and deployment of transport trucks and lifting equipment, which leads to high overall procurement costs, low equipment utilization rate and complicated vehicle scheduling management.
This Shacman crane truck integrates lifting and transportation functions in one unit with extremely high versatility, effectively reducing customer’s equipment investment and daily operating costs. It adopts a compact integrated structure, saving parking space and on-site working space. Different from traditional cranes without stable supporting devices, it is equipped with professional stabilizer outriggers to ensure safer and more stable heavy-load operation. Meanwhile, it features flexible mobility and can quickly reach various complex and narrow working sites that large fixed lifting equipment cannot access.

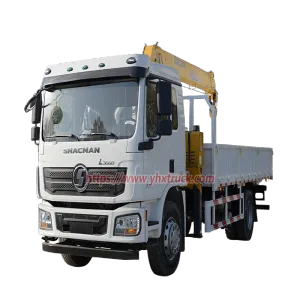

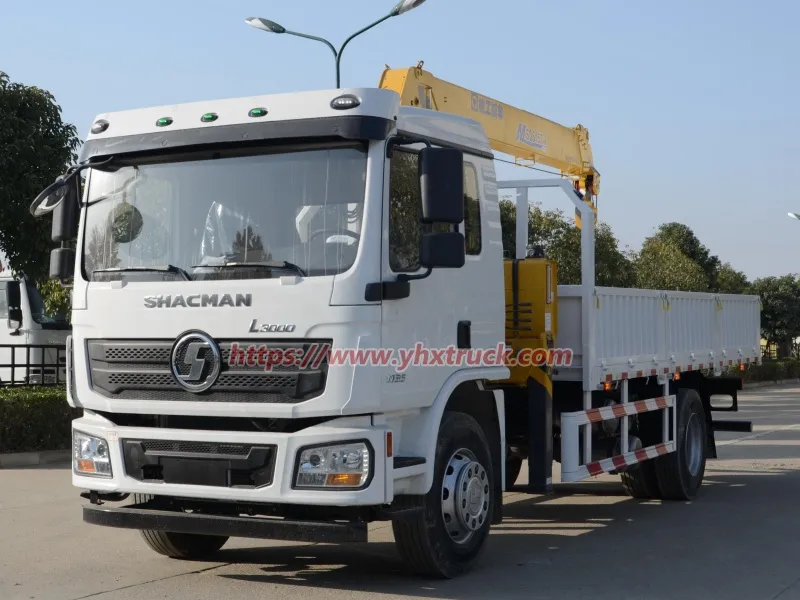

Shacman Truck Mounted Crane |

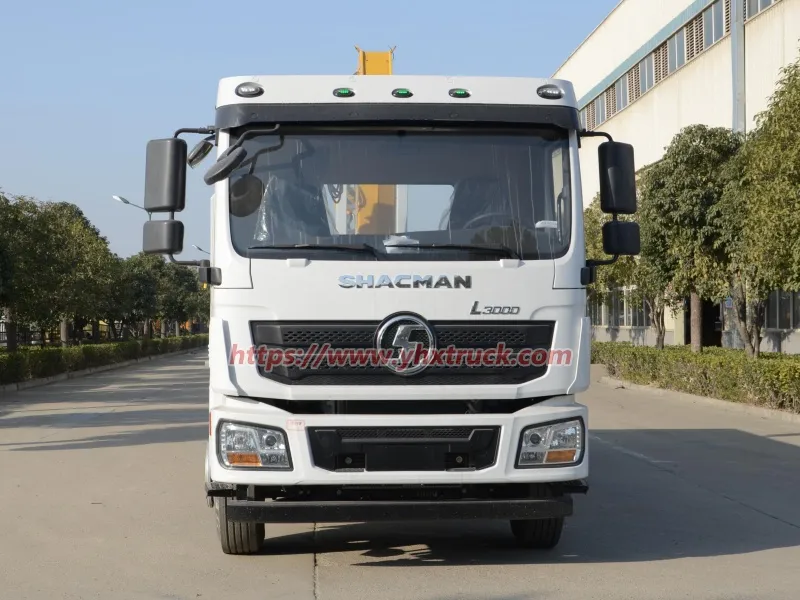

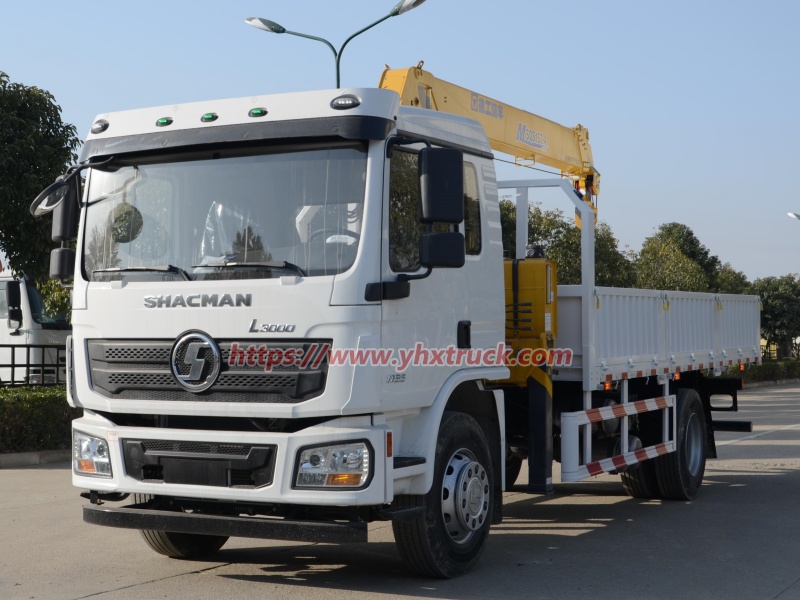

General | Chassis Brand | Shacman Delong L3000 |
| Overall Dimension(L×W×H) | Approx 9000×2500×3800mm |
| GVW / Kerb Weight | 18000kg / approx 11000kg |
Cab | Cab Type | High-roof Sleeper Cab (Row-and-a-half) |
| Cab Capacity | 3 seats (1 driver + 2 passengers) with rear sleeper berth |
| Air Conditioner | Standard equipped |
| Power Windows | Standard equipped |
| Central Lock | Standard equipped |
| Audio & Entertainment System | Standard equipped |
Engine | Fuel Type | Diesel |
| Engine Brand | Weichai (Shacman original matching) |
| Rated Power | 240-270HP/177-199kW |
| Displacement | 6.2L |
| Emission Standard | Euro2/Euro3/Euro5/Euro6 optional |
Chassis Parameter | Drive Type | 4×2 (2 axles) |
| Transmission | Fast 8/10-speed manual gearbox with PTO interface |
| Wheelbase/No.of axle | 5000mm / 2 axles (5800mm optional) |
| Tyre Specification | 10.00R20 heavy-duty radial tires |
| Tyre Number | 6pcs + 1 spare tyre |
| Max Speed | 90km/h |
| Paint | Standard: white weather-resistant finish for cab and cargo box, yellow finish for crane jib |
Superstructure | Standard Rated Lifting Capacity | 8 tons (6.3/10 tons optional) |
| Crane Brand | XCMG /domestic famous brand, imported brand optional |

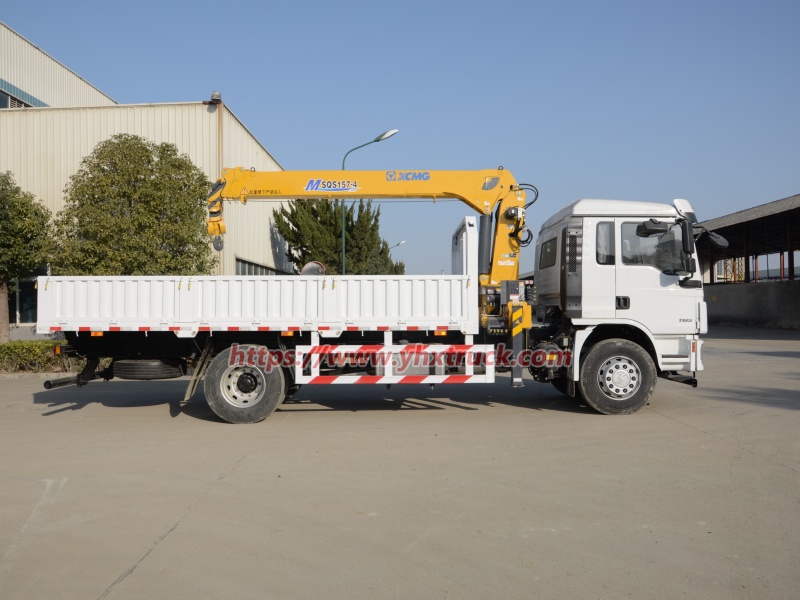

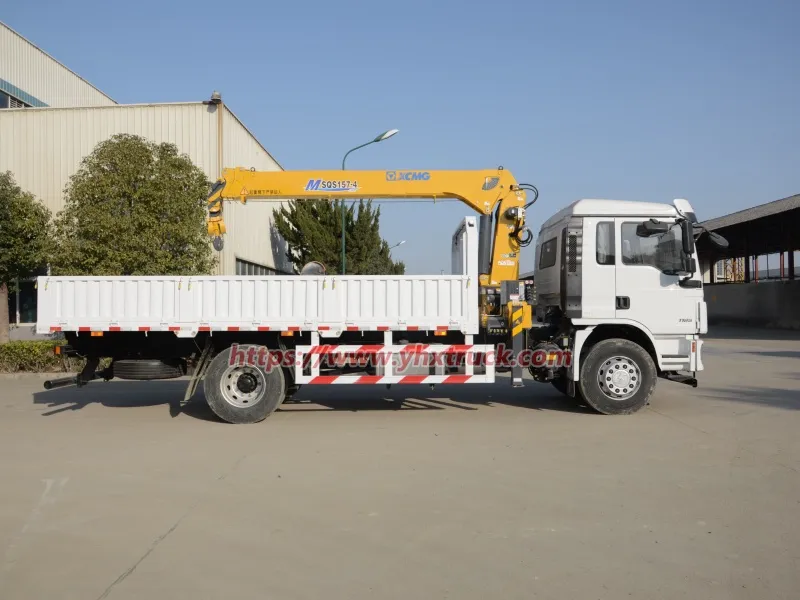

| Crane Type | Telescopic straight boom truck mounted crane, full hydraulic 360° continuous rotation |
| Max Working Radius | ≥15m (for 8 tons model) |
| Max Lifting Height | ≥18m (for 8 tons model) |
| Hydraulic System | Domestic famous brand hydraulic pump & valves, working pressure 16-20MPa, stable operation, low noise |
| Control Mode | In-cab manual lever control + ground remote control (wireless remote control optional) |
| Outrigger System | 4 hydraulic outriggers, with safety interlock device, can be operated independently or simultaneously |
| Cargo Box Dimension | Approx 5500×2400×400mm (customizable) |
| Cargo Box Material | 3mm thick Q235B high-strength carbon steel, with reinforced side rails and anti-slip floor |
| Standard Accessories | Safety overload protection device, height limit device, anti-sway device, hydraulic oil tank with filter, emergency stop button, operation manual & maintenance kit |
| Anti-corrosion | Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts |
5. Vehicle Purchase Guide
Customers can select targeted configurations according to actual working scenarios and load requirements. For open construction sites, long-distance handling and high-altitude lifting operations, the hydraulic telescopic boom crane is recommended for its longer working radius and higher lifting height. For narrow urban spaces, limited working conditions and flexible material handling needs, the knuckle boom crane is the optimal choice.
For conventional small and medium-duty cargo handling and daily engineering projects, 2–20 ton standard models fully meet daily working needs. For large-scale ultra-heavy industrial construction, customized 100+ ton heavy-duty models are available. Adopting mature and wear-resistant Shacman heavy-duty chassis, this crane truck features strong bearing capacity, stable power output and high durability, very suitable for long-term high-frequency outdoor operation.
6. Operation and Maintenance
6.1 Standard Operation Specifications
Before starting operation, fully inspect the Shacman chassis operating condition, hydraulic oil level and cleanliness, crane boom integrity and outrigger flexibility to eliminate potential faults. During formal operation, all stabilizer outriggers must be completely extended to ensure stable vehicle support. Operate hydraulic lifting, extending and rotating actions slowly and smoothly, and strictly prohibit overload operation and violent manipulation to guarantee construction safety.
6.2 Daily Maintenance Tips
Regularly check and replace hydraulic oil and filter elements to keep the hydraulic system clean, unobstructed and stably powered. Inspect crane boom connecting parts, hydraulic pipelines and outrigger structures regularly to prevent loosening, oil leakage and mechanical jamming. Clean dust and sundries on the crane and truck body daily to reduce component wear and aging. Standardized daily maintenance can effectively lower failure rate and extend the overall service life of the vehicle.
7. Frequently Asked Questions (FAQs)
Q1: What is a Shacman Truck Mounted Crane?
A1: It is a specialized vehicle integrating a hydraulic crane system with a heavy-duty modified Shacman truck chassis, designed for lifting, lowering and transporting heavy loads. It combines mobility and lifting capability for construction, logistics and utility work.
Q2: What boom types are available?
A2: Two mainstream hydraulic boom types are optional: telescopic boom and knuckle boom, adapting to different working spaces and operation requirements.
Q3: What is the lifting capacity range?
A3: The standard lifting capacity is 2–20 tons for small and medium-duty work, and customized heavy-duty models can reach over 100 tons for ultra-heavy tasks.
Q4: What are the core advantages of Shacman crane truck?
A4: It has dual functions of lifting and transportation with high versatility, flexible mobility to access various working sites, compact structure to save space and operating cost, and matched stabilizer outriggers for stable and safe operation.
Q5: What are the main application industries?
A5: It is widely applicable in construction engineering, logistics cargo handling, municipal engineering maintenance and emergency rescue scenarios.
Conclusion
The Shacman Truck Mounted Crane is a high-reliability, cost-effective and multi-functional special engineering vehicle. It adopts an integrated structure of premium Shacman heavy-duty truck chassis, cargo bed, full hydraulic crane and stabilizer outriggers, supporting 360° full rotation, hydraulic lifting and boom extending, realizing dual functions of heavy-load lifting and cargo transportation.
Compared with traditional single-function transport vehicles and fixed cranes, this Shacman crane truck effectively solves the pain points of high comprehensive cost, low equipment utilization and poor site adaptability. With stable chassis performance, flexible mobility, compact structure and comprehensive safety design, it fully meets the working demands of construction, logistics, municipal engineering and emergency rescue. With complete tonnage options and flexible boom configurations, it is a trustworthy long-term mobile lifting and transportation solution for global engineering and logistics customers.
