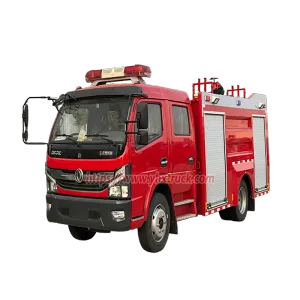

DONGFENG 4x2 Fire Rescue Vehicle 3000L-5000L Water Tank Fire Pumper for Community Industrial Emergency Rescue

    DONGFENG 4x2 Fire Rescue Vehicle 3000L-5000L Water Tank Fire Pumper for Community Industrial Emergency Rescue

    Contate-nos Solicitação on-line
  • Correspondência:alice@xingyaotruck.com
    Whatsapp:+86-19171788596
  • View Less
DONGFENG 4x2 Fire Rescue Vehicle Professional Introduction
The DONGFENG 4×2 Fire Rescue Vehicle is a cost-effective and practical basic emergency fire rescue vehicle refitted on the mature and reliable original Dongfeng commercial chassis. Designed for conventional solid fire disposal, on-site temperature reduction and dense smoke abatement, this fire rescue vehicle is equipped with a standard large-capacity anti-corrosion water tank and high-pressure fire pump system. Adopting pure water fire-fighting mode, it is distinctly different from professional foam fire trucks fitted with additional foam tanks and proportioning mixing systems. The vehicle can output high-speed concentrated water jets to extinguish open flames, cool high-temperature burning structures and effectively block fire spread. It is highly adaptable to urban residential communities, commercial streets, industrial factories, scenic spots, forest protection areas and rural towns without complete municipal water supply systems.
Fire service emergency vehicles are sorted into four core functional categories: water tank fire pumper, combined dry powder & foam fire truck, communication command fire truck and foam fire truck. As a mainstream grassroots fire-fighting device, the DONGFENG 4x2 Fire Rescue Vehicle undertakes major tasks of daily fire inspection, early-stage fire suppression and conventional emergency rescue, featuring strong universality and ultra-high cost performance.

Main Configuration

This Fire Fighting Truck adopts a mature original Dongfeng 4×2 chassis, matched with a high-torque fuel-efficient diesel engine, providing stable power output, reliable driving performance and strong bearing capacity. The complete fire-fighting configuration includes a high-strength thickened carbon steel water tank with internal and external anti-rust and anti-corrosion treatment, professional high-pressure fire pump, sealed integrated pump compartment, long-distance water monitor and high-pressure fog cannon. It is also equipped with symmetrical closed tool cabinets, professional operation control panel, stabilizing outriggers and liquid level monitoring devices. Standard full-set emergency warning lights and sirens are installed to ensure priority passage during emergency missions. The effective jet range of the water monitor reaches no less than 50 meters, and operators can freely adjust water output flow and multiple spraying modes according to different fire conditions. The supporting fire pump can continuously suck water from natural water sources and municipal fire hydrants, maintaining stable and uninterrupted water supply for long-duration fire rescue operations.

Core Advantages

The DONGFENG 4×2 Fire Rescue Vehicle is professionally optimized for conventional solid fires including wood, fabric, plastic and paper combustion fires, delivering stable, efficient and reliable fire suppression performance. In the initial stage of fire accidents, the vehicle can launch rapid fire attack relying on its onboard water tank without external water access. After connecting to external water sources, it can sustain long-term uninterrupted firefighting operation. The matched long-range water monitor and wide-coverage fog cannon greatly improve the comprehensive efficiency of fire extinguishing, high-temperature cooling and dense smoke elimination. The whole vehicle features a compact and reasonable layout, flexible steering and stable driving performance. Core pump room and hydraulic components own low failure rate and outstanding durability, supporting long-hour continuous emergency rescue work. With flexible maneuverability, intuitive operation and rapid emergency response, it effectively strengthens the fire prevention, disaster reduction and emergency rescue capacity of industrial parks, towns and remote grassroots regions.

Application Scenarios

This multi-functional light-to-medium duty fire fighting vehicle is widely suitable for township fire stations, urban communities, commercial districts, industrial parks, logistics yards, tourist attractions and rural areas. It is mainly used for early-stage solid fire suppression, fire scene cooling and smoke removal, daily fire safety patrol and inspection, emergency accident disposal, road cleaning and environmental dust reduction, covering most conventional grassroots fire prevention and public emergency rescue scenarios.

Short Version (Alibaba & Product Catalog)

DONGFENG 4x2 Fire Rescue Vehicle is built on mature genuine Dongfeng 4×2 chassis with double-row crew cabin. Equipped with 3000L–5000L customizable anti-corrosion water tank, CB series high-pressure fire pump and ≥50m long-range water monitor. Featuring stable performance, flexible maneuverability and high cost performance, it is ideal for early fire suppression and daily emergency rescue in communities, factories and rural towns.

Main Technical Parameters

  • Chassis Model: DONGFENG 4×2 Commercial Chassis (Fire Rescue Vehicle Special)

  • Cab: Double Row Crew Cabin, 5 Seats

  • Engine: High-torque Fuel-efficient Diesel Engine

  • Tank Volume: 3000L–5000L (Customizable)

  • Tank Material: Thickened Carbon Steel with Anti-corrosion Treatment

  • Fire Pump: CB Series High-pressure Fire Pump

  • Water Monitor Effective Range: ≥50m

  • Core Function: Early Fire Suppression, Cooling & Smoke Abatement

  • Application: Urban, Industrial & Rural Emergency Fire Rescue







DONGFNEG Fire Rescue Vehicle 4x2 chassis (5000litter Capacity)

General

Chassis Brand

DONGFNEG 4x2


Overall Dimension

7030X2220X 3050mm


GVW / Kerb Weight

11400kg /6050 kg

Cab

Driving Room

DONGFENG cab,


Air Conditioner

W/ air conditioner

Engine

Engine Model

Cummins Engine


Max Power

140HP


emission standard

Euro 2/Euro 3/Euro 5

Transmission

Transmission Brand

FAST


Transmission Box

6-speed

Chassis

front axle /rear axle

front axle 2.7tons/rear axle 6.8 tons


Tire Specification

8.25R20


Wheel

3800

Superstructure

Capacity

5000litter


Material

Carbon steel


The upper body assembly is composed of water tank, pump compartment, water cannon, fog cannon and tool boxes.SCBA fixing holder

System

Liquid Storage System

Carbon steel anti-corrosion water tank, 5000L, with level monitor, anti-wave plate & drain valve


Pump System

High-pressure fire pump, integrated pump compartment, PTO drive, pressure gauge & vacuum priming device


Injection System

Fire water monitor with straight jet & atomization, range ≥70m


Auxiliary System

Control panel, hydraulic outriggers, toolbox, complete warning lights & sirens
